5 essential concrete pump pipe fittings you need
In concrete pumping construction, pipe fittings are an important component of the pumping system, directly affecting construction efficiency and concrete delivery quality. As a professional supplier of concrete pump pipe fittings, we introduce five key types of concrete pump pipe fittings to help you better understand their functions and application scenarios.
Straight Pipe (Conveyance Pipe)
Straight pipes are the most basic fittings in concrete pumping systems, used for straight-line concrete delivery. Typically made of high-strength alloy steel, their inner walls are treated for wear resistance to withstand the high-speed friction of concrete. The standard length of straight pipes is generally 3 meters, but custom lengths can be produced according to construction requirements.
Application scenarios: Suitable for horizontal or vertical pumping, such as in high-rise buildings, bridges, tunnels, and other projects.
Elbow Pipes (Bends)
Elbow pipes are used to change the direction of concrete pumping, with common angles including 90°, 45°, and 30°, to accommodate different construction layouts. Due to the greater impact and wear they endure, elbow pipes are typically designed with thickened walls or wear-resistant linings to extend their service life.
Application scenarios: Suitable for situations requiring changes in pumping direction, such as turning the boom of a concrete pump truck or navigating corners at construction sites.
Conical pipes (transition pipes)
Conical pipes are used to connect pump pipes of different diameters, ensuring smooth concrete flow and reducing the risk of blockages. For example, when transitioning from a 125mm to a 150mm pipe diameter, a conical pipe is required for a smooth transition.
Application scenarios: Suitable for situations where the pipe diameter changes in the pumping system, such as the connection between the pump truck outlet and the delivery pipe.

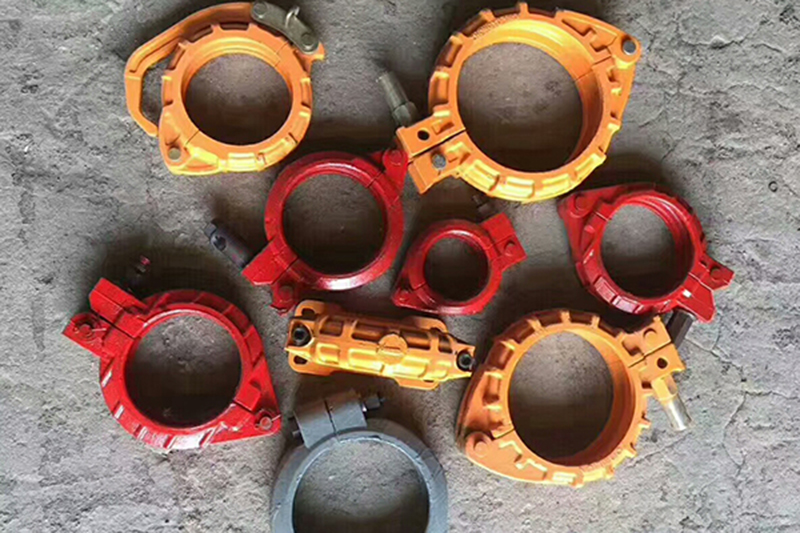

Pipe Clamps (Quick Connectors)
Pipe clamps are critical components for quickly connecting and securing pump pipes, ensuring they do not loosen or leak during high-pressure transportation. High-quality pipe clamps are made of high-strength steel and equipped with sealing rings to enhance connection stability and sealing performance.
Application scenarios: Suitable for quick assembly and disassembly of various pump pipes, improving construction efficiency.
Sealing Gasket (Pump Pipe Sealing Ring)
Sealing gaskets are installed at the connection points of pump pipes to seal the conveying pipeline and prevent leakage.
Application Scenarios: Suitable for concrete conveying pipelines, used in conjunction with pipe clamps.
Selecting appropriate concrete pump pipe fittings is critical for construction efficiency, cost control, and safety. As a professional supplier, we offer a wide range of high-quality pump pipe fittings to ensure your pumping system operates efficiently and reliably. For more product information or technical support, please feel free to contact us at any time!
