How much does a 5 inch concrete pump pipe weigh?

As a supplier of concrete pump pipe fittings, we are often asked by our customers about the weight of various pipe sizes.5-inch concrete pump pipe is one of the common sizes used on construction sites, and understanding its weight is critical for logistics and transportation, equipment installation, and construction planning. This article will detail the weight of 5-inch concrete pump piping and the factors that influence it.

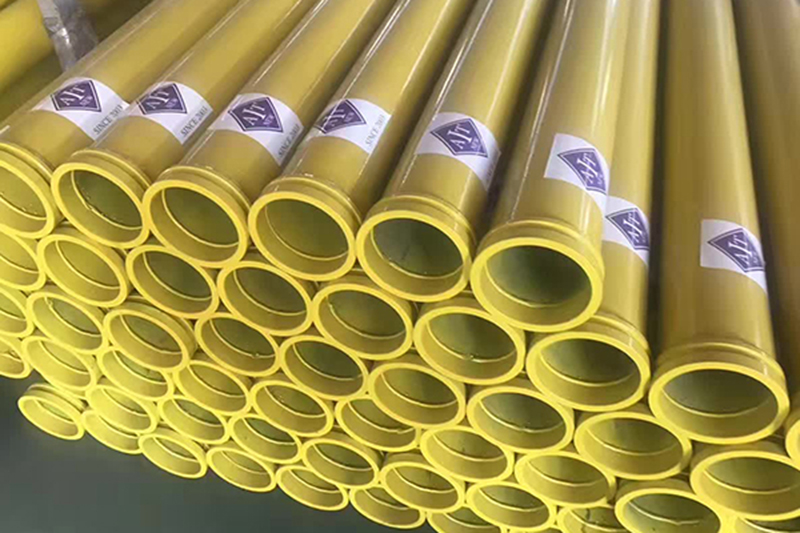

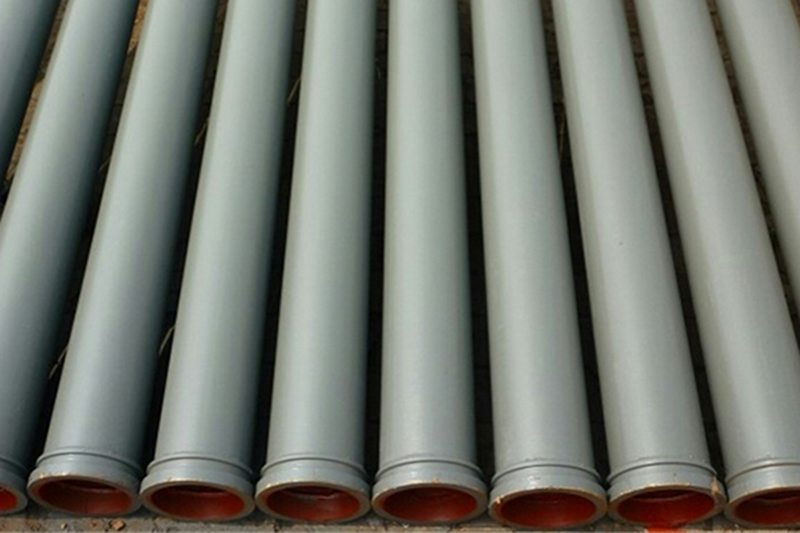

Standard weight of 5-inch concrete pump pipe
The standard weight of 5-inch concrete pump pipe (nominal diameter 125mm) will vary depending on its length, wall thickness and material. Typically:
Standard length pipe: a single length of 5-inch concrete pump pipe is usually 3 meters (about 10 feet), and its weight is approximately between 45-55 kg (100-120 lbs).
The effect of different wall thicknesses: a 5-inch pipe with normal wall thickness is about 50 kilograms, while a thickened version may weigh 60 kilograms or more.
Material differences: high chrome alloy pipes are about 5-8% heavier than normal carbon steel pipes, and wear-resistant pipes may be 10-15% heavier than standard pipes.

Factors affecting the weight of 5-inch concrete pump pipe
Pipe wall thickness: this is the most important factor affecting the weight. Construction 5 inch pump pipe usually has 4.5mm, 5.0mm, 6.0mm and other different wall thickness specifications, wall thickness of each increase of 0.5mm, a single 3 meter pipe weight increase of about 3-4 kg.
Pipe material: different alloy composition of the steel density has a slight difference. Common pump pipe materials include:
Ordinary carbon steel (about 7.85g/cm³)
High-chromium alloy steel (about 7.9g/cm³)
Bimetallic composite pipe (weight in between)
Pipe length: although the standard length is 3 meters, there are special lengths such as 1 meter and 2 meters, and the weight increases or decreases proportionally.
Weight of fittings: including additional components such as flanges, wear rings, etc. These usually add 5-10% to the total weight.

Weight comparison table for different specifications of 5-inch pump pipe
Specification Wall Thickness(mm) Length(m) Approximate Weight(kg)
Standard 5-inch pipe 4.5 3 45-48
Thickened 5-inch pipe 6.0 3 55-60
Wear-resistant 5-inch pipe 5.0 3 50-55
Short section 5-inch pipe 4.5 1 15-16

Impact of Concrete Pump Pipe Weight on Construction
Knowing the exact weight of 5-inch concrete pump pipe is important to construction in a number of ways:
Transportation planning: The carrying capacity of the transport vehicle can be accurately calculated, and a 20-foot container can usually carry about 10-12 standard 5-inch 3-meter pump pipes.
Equipment selection: the weight of the pipe affects the selection of the pumping vehicle, especially for high-rise pumping, you need to consider the weight of the total pipeline on the pumping machine requirements.
Manual Installation: The weight of a single pipe of around 50 kilograms means that two people are usually required to collaborate on the installation, or to use small machinery to assist.
Support design: The load bearing design of the pipe support structure requires accurate weight data.

How to get the exact weight of a concrete pump pipe
As a specialized supplier, we advise our customers to
Check the technical data on the product label
Ask for product test reports from the supplier
Request measured weights from suppliers for special customized pipes
Consider the impact of wear and tear on the weight of the pipe after use (5-10% weight loss due to wear and tear after long term use).

As a medium-sized pumping pipe, 5-inch concrete pump pipe balances the need for strength and portability with a single weight of around 50 kg. Knowing its weight accurately can help optimize the construction plan and improve work efficiency. As a professional supplier, we not only provide standard products, but also recommend the most suitable pipe sizes according to the characteristics of customers’ projects, and provide detailed weight parameters and technical support. Our technical team is always ready to provide professional services if precise weight calculations are required for specific projects.
