What is the standard length of concrete pump pipe?

Standard Length of Concrete Pump Pipe and Its Importance in Construction
As a key component in the concrete delivery system, the length specification of concrete pump pipe directly affects the construction efficiency and project quality. In this article, we will introduce the standard length specifications of concrete pump pipe, the application scenarios of different lengths and the importance of choosing the right length to provide professional reference for the engineering construction units and purchasers.

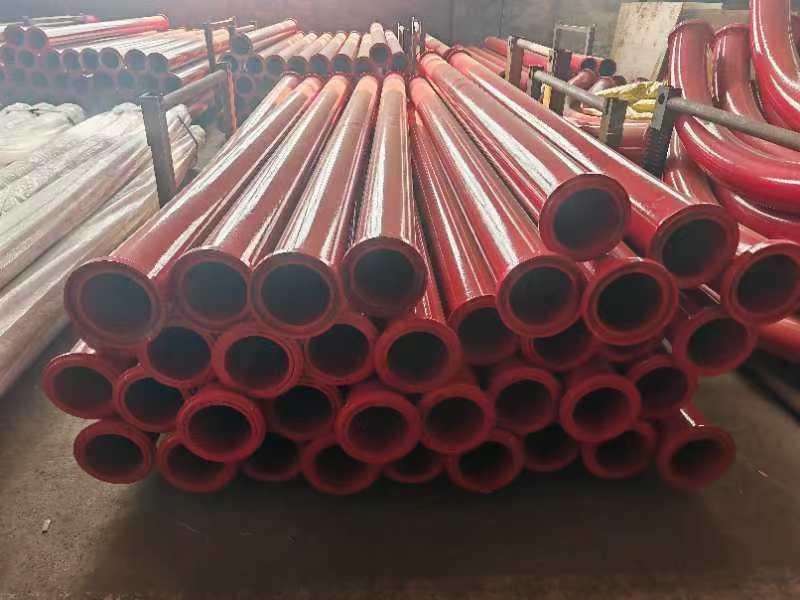

Standard length specifications of concrete pump pipe
According to industry standards and actual production experience, the standard length of concrete pump pipe mainly has the following specifications:
The length of concrete pump pipe has several kinds of 0.5 meters, 1 meter, 2 meters, 3 meters, and 3 meters in length, and 3 meters in length is common. The length of the pump pipe used on the pump truck is more special and needs to be determined according to the parameters of the boom.
The length of the pump pipe of the ground pump is 0.5 meters, 1 meter, 2 meters, 3 meters several kinds, 3 meters are used the most, and the other sizes are for the convenience of construction. If you need a special length of floor pump pump tube, please communicate with the pump tube manufacturer in detail, production.
Pump truck pump pipe is a concrete pump truck conveying pipeline, commonly used length of 3 meters, 3.04 meters, 2.36 meters, 2.87 meters, 2.9 meters, 1.76 meters, 0.8 meters, 0.945 meters, 4 meters and so on a variety of, the length of the truck pump pipe is more special, and the ground pump pipe has a big difference. The length of the pump pipe needs to be determined according to the parameters of the pump truck boom to determine the length of the pump pipe, different brands and models of pump trucks is not the same length of the pump pipe.

Considerations for choosing the length of the pump pipe
Reasonable selection of the length of the pump pipe requires comprehensive consideration of a variety of factors:
Characteristics of the construction environment: space constraints, vertical height, horizontal distance, etc. will affect the length of the choice. When piping vertically upwards, the length of the horizontal pipe on the ground should not be less than one-fourth of the length of the vertical pipe, and should not be less than 15m58
Concrete properties: including aggregate size, slump and so on. When the maximum particle size of coarse aggregate is not greater than 25mm, the conveying pump pipe with an inner diameter of not less than 125mm can be used; when it is not greater than 40mm, the conveying pump pipe with an inner diameter of not less than 150mm can be used.8
Conveying Distance: It is preferable to choose a longer pump pipe to reduce the number of joints for long distance conveying, and it can be flexibly chosen for short distances.
Matching of equipment: it is necessary to match the model number of the pump with the model of the concrete pump and its output.
Economic Consideration: Balancing the purchasing cost and construction efficiency Pump pipe length and construction quality Efficiency

Pipeline length and construction quality
Choosing the right length of pipeline has a direct impact on construction quality:
Reducing the risk of plugging: too many joints increase the probability of plugging, while a reasonable length of pipeline can maintain the continuity of conveying
Improving the conveying efficiency: reducing the number of joints means less downtime and higher construction efficiency
Guaranteeing the quality of concrete: the continuous conveying process can help to keep the concrete homogeneous and avoid the separation of the layers Dissociation
Reduced maintenance costs: reasonable length of the pump pipe arrangement can extend the service life and reduce the frequency of replacement
As a professional concrete pump pipe manufacturer, we offer a full range of standard length pump pipes, which can also be customized according to customer’s special needs. Whether it’s a short, flexible 3-meter pipe or a long, efficient 12-meter pipe, we ensure that the quality of our products meets the highest industry standards, providing you with reliable protection for your project.
Choosing the right length of pumping pipe is one of the key factors in ensuring a smooth concrete pumping operation. By understanding the characteristics and application scenarios of various standard lengths, builders can make more scientific purchasing decisions to optimize the construction process, improve project quality and reduce costs. We recommend that the selection of pumping pipe lengths be fully considered during the planning stage of a specific project, and that professional and technical personnel be consulted for targeted advice if necessary.
