What is a concrete pump pipe and what is its purpose

What is a concrete pump pipe?
A concrete pump pipe is a core component of a concrete pumping system, specifically designed to transport concrete mixtures under high pressure. It consists of a series of high-strength steel pipes connected via special joints, forming a continuous conveying channel from the concrete pump to the pouring point. Modern concrete pump pipes are typically manufactured from high-quality alloy steel and undergo special heat treatment processes, resulting in exceptional wear resistance and compressive strength, capable of withstanding pressures exceeding 100 bar during concrete pumping.

Main types of concrete pump pipes
Based on application scenarios and functional requirements, concrete pump pipes are primarily categorized into the following types:

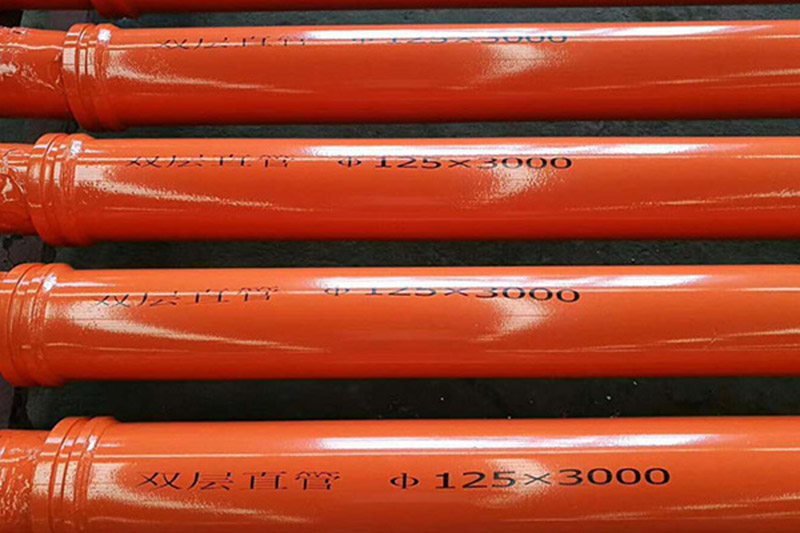

Straight pipes: Standard-length straight pipe sections, available in specifications such as 1 meter, 2 meters, and 3 meters
Bend pipes: Pipe fittings used to change the direction of conveyance, with common angles including 90°, 45°, 30°, and 15°
Reducing pipes: Transition fittings connecting pipes of different diameters
Wear-resistant pipes: Ultra-wear-resistant pipes with specially hardened inner walls, suitable for high-intensity pumping operations
End hoses: Rubber hoses installed at the end of the pump pipes for precise pouring.

Main applications of concrete pump pipes
Concrete pump pipes play an irreplaceable role in modern construction:
Concrete delivery for high-rise buildings: Through the pump pipe system, concrete can be vertically transported to work surfaces hundreds of meters high, addressing the low efficiency of traditional tower crane transportation. In super-high-rise buildings, multi-stage pumping systems can relay concrete to heights of over a kilometer.
Large-volume concrete pouring: For projects such as hydroelectric dam construction or large-scale foundations requiring continuous pouring of large volumes of concrete, the pump pipe system provides stable and efficient transportation capacity to ensure construction quality and progress.
Long-distance concrete transportation: In cases where the site is restricted or the pouring point is far from the mixing plant, the pump pipe system can horizontally transport concrete over a kilometer, breaking through the limitations of traditional transportation methods.
Special construction environment applications: In narrow spaces such as tunnels and underground engineering projects, the pump pipe system can be flexibly arranged to achieve precise concrete transportation.
Improved construction efficiency: Compared to traditional transportation methods, pumped concrete can increase work efficiency by 5-10 times, significantly shortening construction schedules and reducing labor costs.

As a supplier of concrete pump pipe fittings, we offer high-quality pump pipes and accessories in various specifications to ensure your construction projects have reliable concrete delivery solutions. Choosing professional pump pipe products not only improves construction efficiency but also ensures engineering quality and construction safety.
